New Old stock

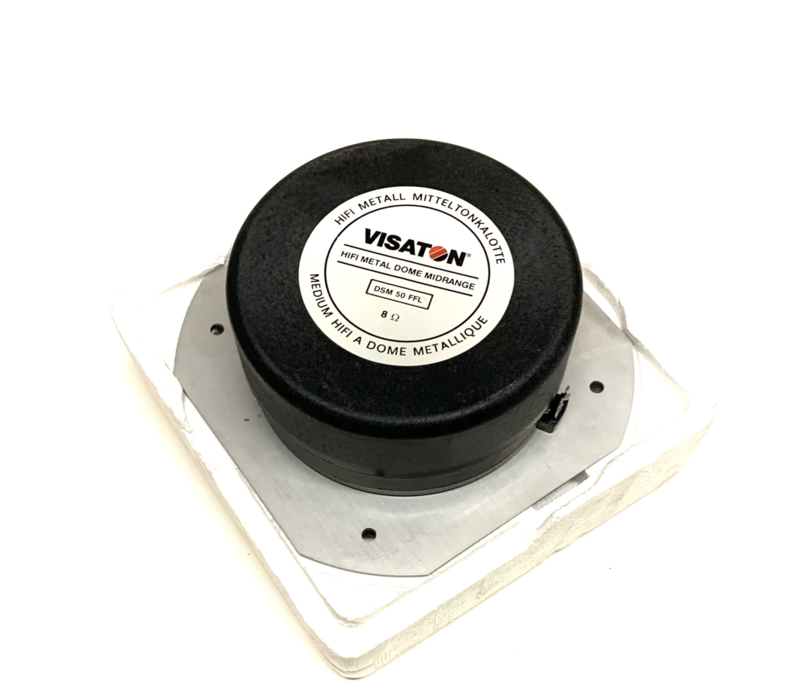

Visaton DSM 50 FFL - 8 ohm zilver
| Technical Data: | |
|---|---|
Nominal power 12 dB/Okt; 4000 Hz | 80 W |
| Peak power 12 dB/Okt; 4000 Hz | 140 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | 1000–30000 Hz |
| Mean sound pressure level | 90 dB (1 W/1 m) |
| Opening angle (-6 dB) | 138°/8000 Hz |
| Resonance frequency | 1600 Hz |
| Magnetic induction | 1,7 T |
| Magnetic flux | 425 µWb |
| Height of front poleplate | 2,5 mm |
| Voice coil diameter | 25 mm |
| Height of winding | 2 mm |
| Cutout diameter | Ø 80 mm |
| Net weight | 0,53 kg |
| D.C. resistance Rdc | 5,9 Ohm |
| Mechanical Q factor Qms | 1,83 |
| Electrical Q factor Qes | 1,87 |
| Total Q factor Qts | 0,92 |
| Effective piston area | 4,9 cm² |
zonder originele doos
