Visaton W200S 8 Ohm 75 W
Specifications
- power handling (continuous/programme) = 75/115 W
- frequency range = -6000 Hz
- resonance frequency fs = 30 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 88 dB (2,83V; 1m)
- DC resistance Re = 6,0 Ohm
- force factor BL = 9,0 N/A
- voice coil inductance L = 2,2 mH
- effective piston radiating area Sd = 214 cm2
- effective mechanical mass incl. air load mms = 26 g
- equivalent volume of compliance Vas = 70 l
- total Q factor Qts = 0,33 (Qms=3,59, Qes=0,36)
- voice coil diameter = 35 mm
- maximum peak linear excursion vibration xlin = +/- 10 mm

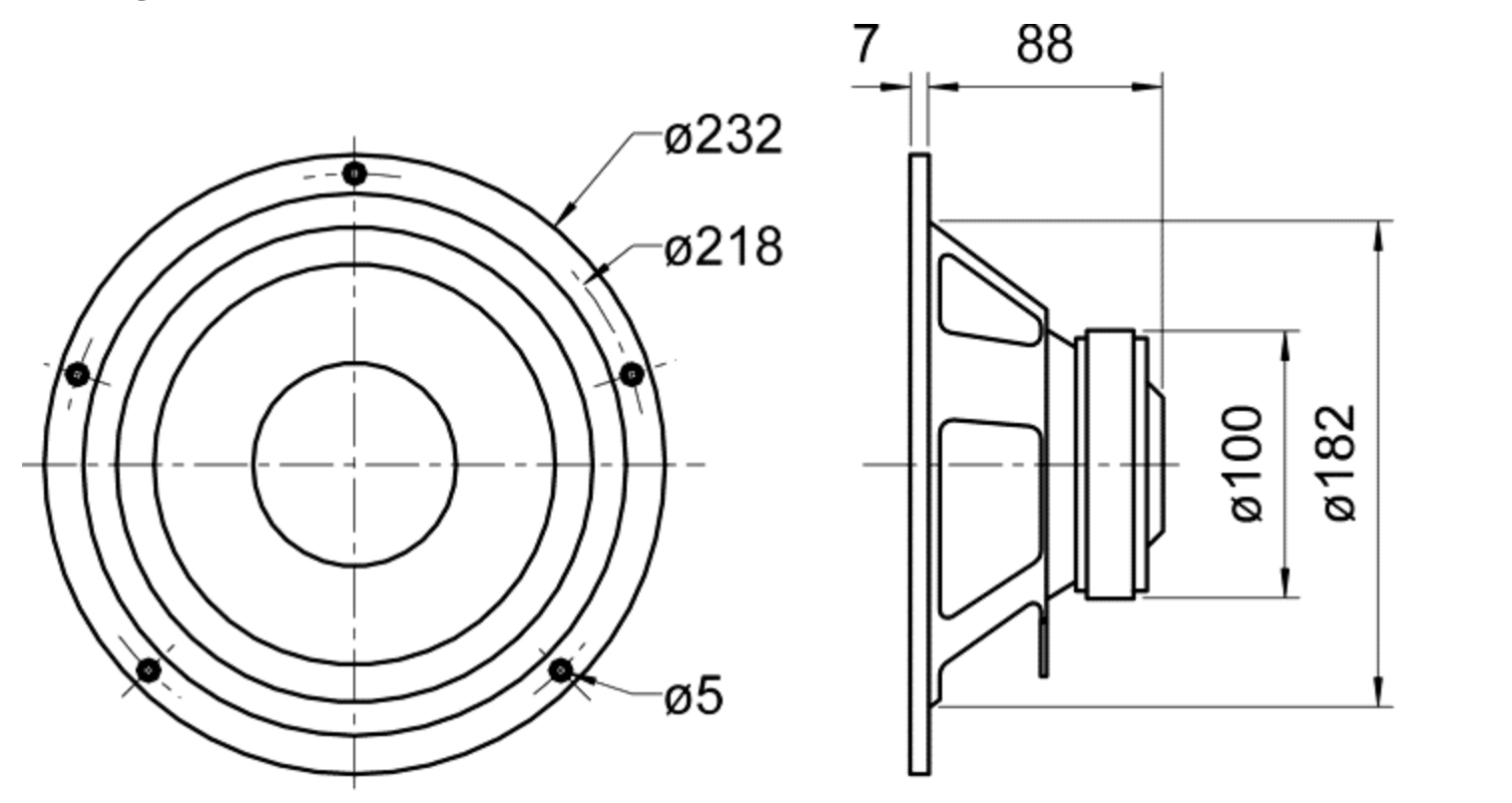

- mounting diameter d = 184 mm
- overall diameter d = 232 mm
- mounting depth (not countersunk) t = 95 mm
- mass m = 1,5 kg
