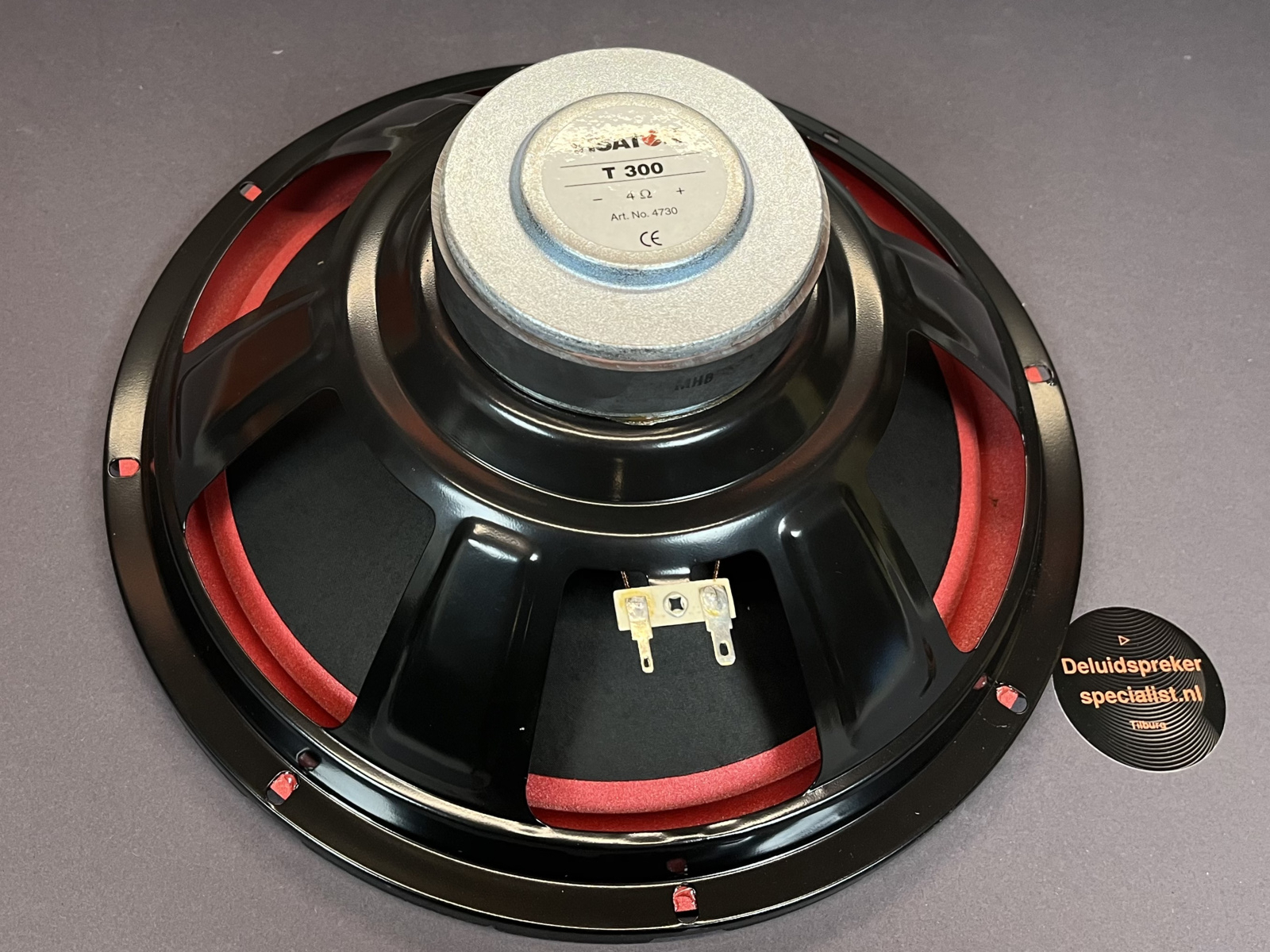

Visaton T300 woofer 12" 4 ohm 120W
Artikelnummer 4730
- PRMS 120W
- PMUS 180W
- Frequency response fc .. 1000Hz
- Mean sound pressure level 88 dB (1 W/ 1m)
- Excursion limit 22 mm
- Resonance frequency fs 24 Hz
- Magnetic induction 1 Tesla
- Magnetic flux 720 µ Weber
- Height of front pole-plate 6 mm
- Voice coil diameter 3.8 cm
- Height of winding 1.5 cm
- Cutout diameter 28 cm
- Net weight 1.9 kg
- D.C. resistance Rdc 3.3 Ohm
- Mechanical Q factor Qms 3.66
- Electrical Q factor Qes 0.8
- Total Q factor Qts 0.66
- Equivalent volume Vas 361 l
- Effective piston area Sd 515 cm2
Dynamically moved mass Mms 45 g
Force factor Bxl 5.27 T · m
Inductance of the voice coil L 0.6 mH
