Visaton W 100 S 8 Ohm
Specifications
- power handling (continuous/programme) = 30/50 W

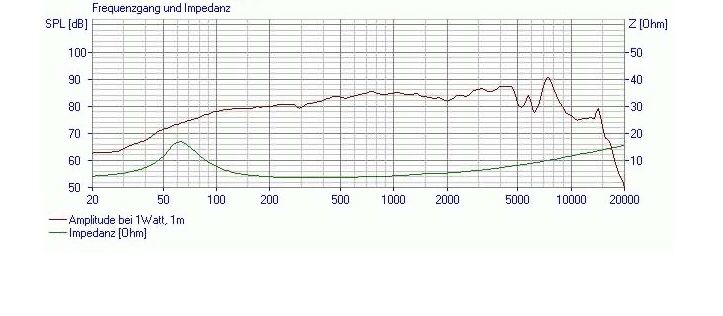

- frequency range = 70-15000 Hz
- resonance frequency fs = 66 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 92 dB (2,83V; 1m)
- DC resistance Re = 3,3 Ohm
- force factor BL = 3,1 N/A
- voice coil inductance L = 0,5 mH
- effective piston radiating area Sd = 53 cm2
- effective mechanical mass incl. air load mms = 4,2 g
- equivalent volume of compliance Vas = 5,5 l
- total Q factor Qts = 0,49 (Qms=2,45, Qes=0,61)
- voice coil diameter = 20 mm
- maximum peak linear excursion vibration xlin = +/- 2 mm

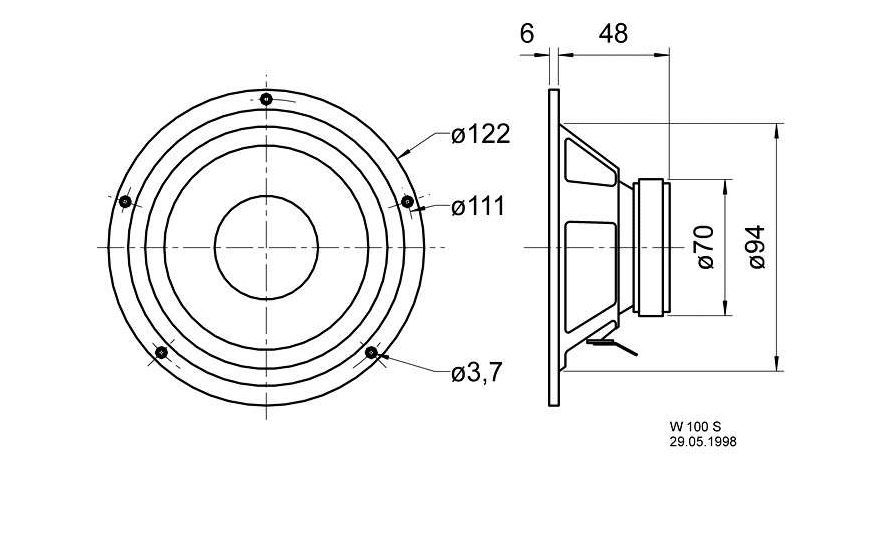

- mounting diameter d = 94 mm
- overall diameter d = 122 mm
- mounting depth (not countersunk) t = 54 mm
